The dynsight workflow

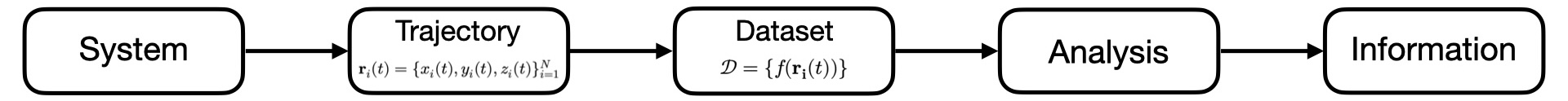

The dynsight platform has been designed to merge different techniques or methods into a single, user-friendly workflow. The final aim is to allow users to easily build complex analysis pipelines with minimal effort and with a single software.

_images/workflow.jpeg

System

dynsight is a modular and flexible framework aimed at the analysis of dynamical trajectories, regardless of how they are generated.

This design allows the same set of tools and methods to be applied consistently to trajectories originating from molecular dynamics simulations as well as from experimental video data.

Trajectory

All the dynsight applications operate on trajectories, loaded from standard file types, containing particles coordinates sampled over time. In its current state, dynsight supports some among the most common trajectory formats, such as .xtc, .xyz, as well as trajectories provided through MDAnalysis Universes.

Descriptor calculations in dynsight are performed via the trajectory.Trj class which wraps an MDAnalysis.Universe.

Dataset and analyses

Once a trajectory is loaded into a trajectory.Trj object, users can compute a variety of descriptors using the methods provided by this class. The full list of methods is available here.

Most of these methods return datasets encapsulated in trajectory.Insight objects, which can be a target of post-processing analyses or clustering methods. There are also specific types of Insight objects, such as trajectory.OnionInsight that contain tailored visualization methods or analysis for specific algorithms (such as the Onion Clustering algorithm in this case).

Examples and tutorials

As a minimal example, a typical code for the computation of the LENS descriptor may look like this:

from pathlib import Path
from dynsight import Trj

traj_file = Path("path/to/the/traj.xtc")
topo_file = Path("path/to/the/traj.gro")

trj = Trj.init_from_xtc(
    traj_file=traj_file,
    topo_file=topo_file,
)  # This is a Trj object

lens_descriptor = trj.get_lens(
    r_cut=10.0,
)  # This is an Insight object

lens_values = lens_descriptor.dataset  # The np.ndarray with the computed values

clustering = lens_descriptor.get_onion_smooth(
    time_window=10,
)  # This is an OnionSmoothInsight object

We strongly suggest to follow the tutorials available in the tutorials section
